12V DC Geared Motor Kit, 600RPM 37GB-520 Micro Reduction High Torque Motor for DIY Project with PWM Controller, Flange Coupling Connector, Mounting Bracket (600, RPM)

Motor Model: 37GB-520Motor Type: DC Geared MotorRated Voltage: 12V DCNo Load Speed: 66RPM, 107RPM, 200RPM, 319RPM, 600RPM, 960RPMNo Load Current: 0.15AWorking Current: 0.5ATorque: 0.5kg.cmMax. Power: 18WShaft Diameter: 6mm (D-shaft 5.4mm)PWM Controller Model: CCM6NPWM Frequency: 16KHzWorking Voltage: 6V - 30V DCOutput Voltage: 0 - 100per cent of input voltageRated Current: 6AMaximum Current: 10AAdjustable Speed Range: 0 - 100 percent

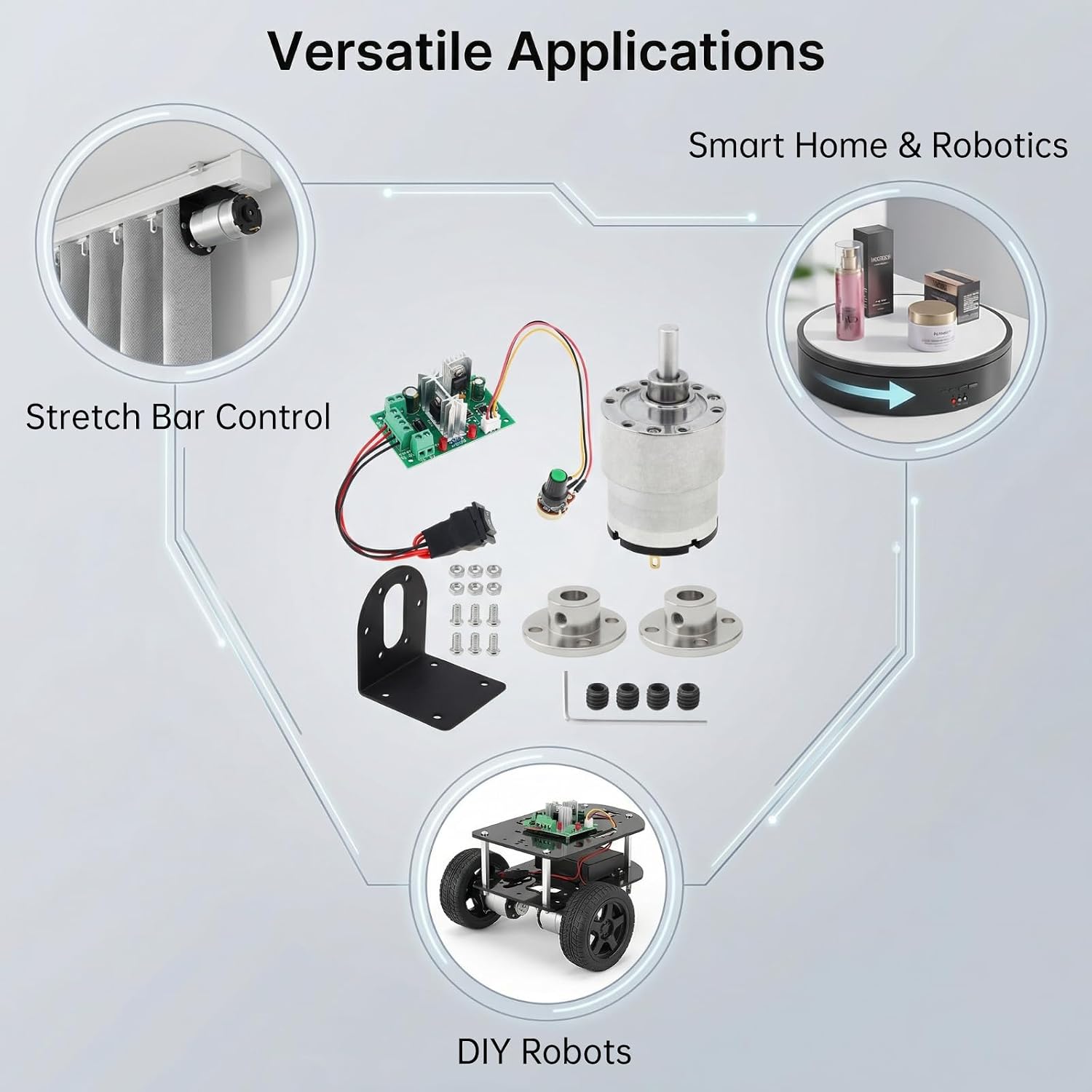

• Package Includes: 1 pcs gear motor, 1 pcs DC motor speed controller, 2 pcs flange coupling, 1 pcs motor bracket, 1 pcs wrench and all necessary mounting screws
• DC Geared Motor: DC reduction motor is made of zinc alloy housing and all metal gearbox, built in pure copper coil, ensuring greater torque and longer service life; The D-shaped output shaft offers good toughness and impact resistance, making the large torque reduction motor extremely durable; This reduction motor has the characteristics of low energy consumption and high safety; Its voltage is DC 12V, no-load speed is 600rpm, load torque is 0.5kgf.cm, max. power up to 18W
• Flange Coupling Connector: The rigid flange coupling inner diameter is 6mm/0.24inch; It is made of carbon steel for strength, durability, and wear resistance; The flange coupling is made with high-precision technology, which can achieve flat installation, and ensuring a tight connection between the two axes, prevent the model machine from falling off during work
• DC PWM Motor Speed Controller: The DC motor speed regulator has an operating voltage of 6V-30V DC, a rated current of 6A, maximum current up to 10A, maximum power up to 200W, and a speed regulation range of 0 to 100 percent; PWM frequency is 16 KHz, support PLC / MCU control, can be externally controlled for speed regulation via 0-5V signal; Easy to use, stable performance, high efficiency, and low noise
• Application: This micro geared motor and motor speed controllers are ideal for miniature DC gear motors in robotics, power tools, model making, small automation equipment, and smart devices; high hardness guide rail model accessories are ideal for a variety of DIY applications, RC motor model shaft connection, and are a good addition for amateurs and professionals
