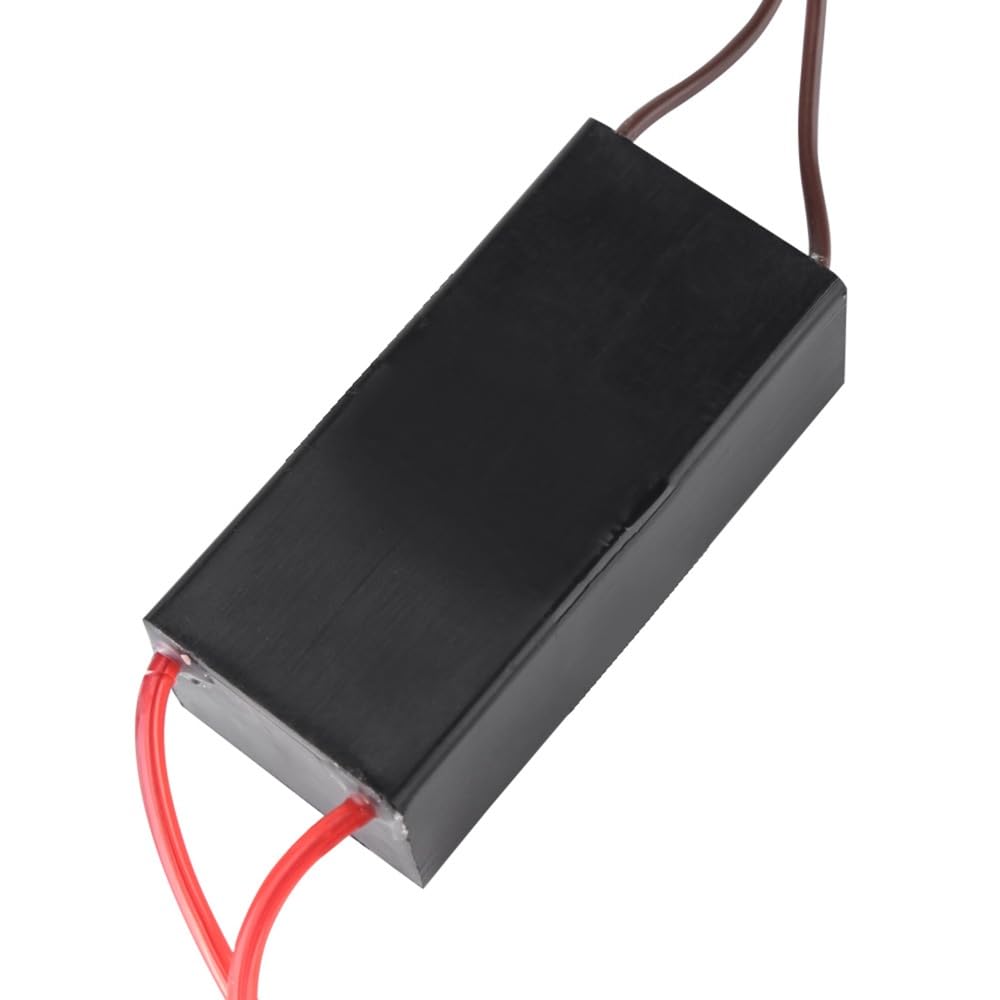

DC 12V High Voltage Pulse Generator 60KV – Arc Ignition Coil Module for Scientific Experiments, 6V-12V Input with Pulse DC Output

DC 12V High Voltage Pulse Generator delivers precise 60KV super arc ignition for scientific and educational applications. This compact module efficiently converts 6V-12V DC input into high-voltage pulse output, ideal for experiments and electronic projects requiring reliable high-voltage sourcesSpecifications:Size: 71*35*25mm(2.80*1.38*0.98in)Color: BlackInput Voltage: 6V-12V DC(Strictly prohibited from exceeding.)Input Current: 1A-3AInput Cable Length: Approx. 25cm(9.84in)High Voltage Type: Pulse DCOutput Voltage: About 60KV(Please note safety during use.)Output Current: 5MAOutput Cable Length: Approx. 45cm(17.72in)Arc Discharge Distance: 1.5cm(0.59in)Power Supply: for Ni-Cd/Ni-mh battery pack, 6V or 12V battery(12V is better)Package Includes:1 x High Voltage GeneratorNote:1.Input wires are thinner, shorter; output wires are red and thicker; no need to distinguish positive or negative polarity2. Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity3. The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily4.The module has high power and inner heat is not easily dissipated, so it can not work for long time5.The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can do the trick6.The color of the wire is randomly assigned, and its function is the same

• High Voltage Output: Delivers powerful 60KV pulse current for reliable arc generation in scientific experiments and electronic applications
• Compact Design: Measures only 71 by 35 by 25 millimeters with lightweight construction for effortless integration into various projects
• Wide Compatibility: Operates with 6V to 12V DC power sources including for Ni-Cd and for Ni-MH battery packs for versatile usage scenarios
• Simple Use: Features color marked input and output cables with 25 centimeter and 45 centimeter lengths respectively for straightforward setup
• Complete Package: Includes 1pcs high voltage generator module ready for immediate use in educational or experimental settings, the color of the wire is randomly assigned, and its function is the same
