Handheld Digital Phosphor Oscilloscope 2 in 1 Signal Generator 180MHz -3DB Analog Bandwidth 500MSPS XY Mode ,Professional Designed

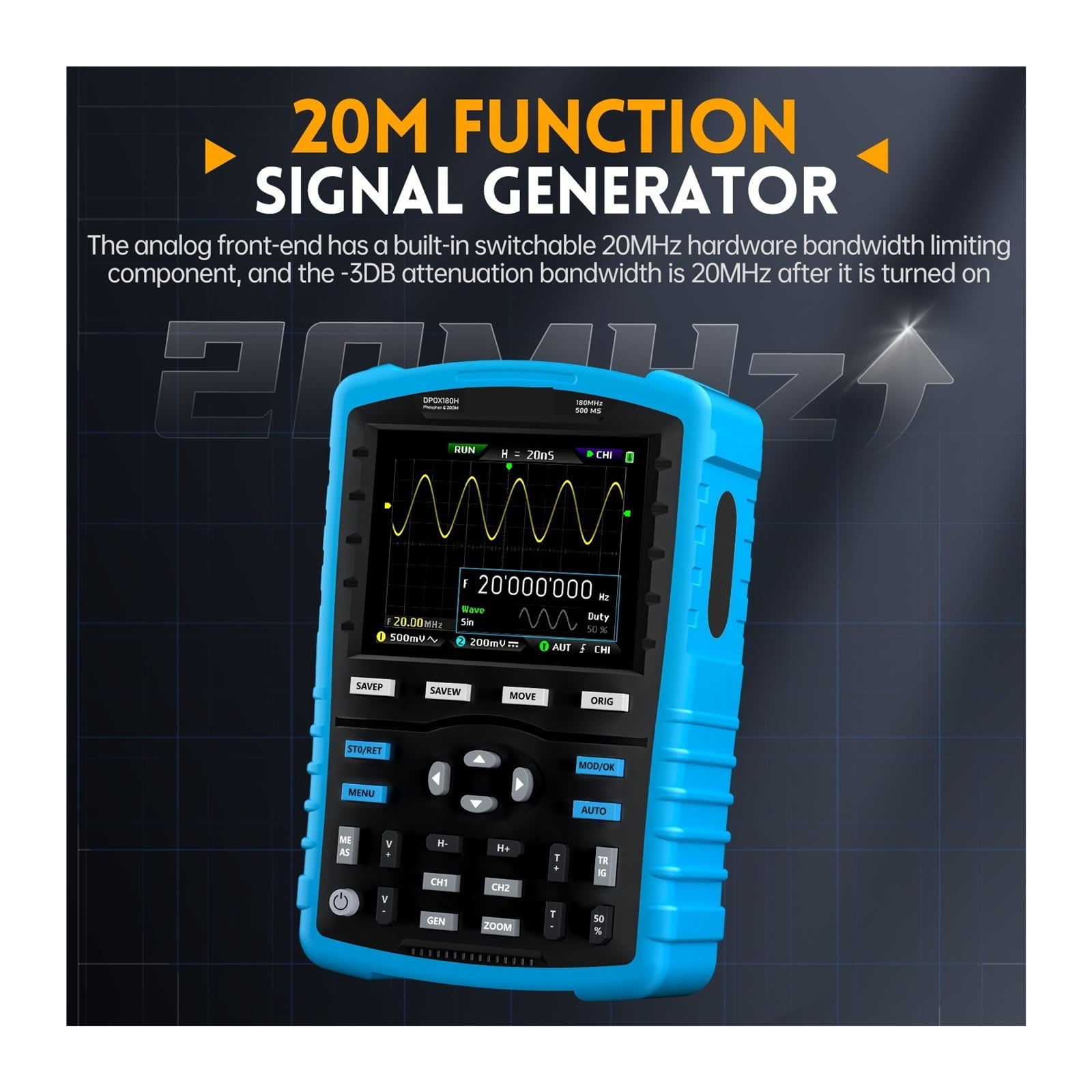

<p>Description:</p><p>TWith a vertical sensitivity as low as 5mV, it can better measure small signals of 5mVPP. Ultra-high signal-to-noise ratio, fully sealed shielding measures, stable circuit feedback design, clean and clear waveform. The original adjustable automatic bandwidth limit and adaptive adjustable trigger suppression are suitable for analyzing and measuring signals with relatively large noise. 20M hardware bandwidth limit, can filter out noise above 20MHz. The trigger adopts digital trigger technology with high precision. It has three trigger modes: automatic/single/normal. It has a ability to capture periodic signals, burst signals, and protocol signals. The signal generator has 14 kinds of function signal waveforms and a free-customized chopping waveform. The frequency of the sine wave can reach up to 20MHz, and the other waveforms can reach up to 10MHz. The chopping output function can store up to 500 customized signals. It has three-time base modes of YT, XY, and rolling. Manual cursor measurement is suitable for measurements with large noise signals. Efficient one-button automatic adjustment, adaptive 25%, 50%, 75% electric level trigger, it only takes 2 seconds to measure 1VPP/1KHz. Save waveforms and screenshots with one key, up to 250 sets of waveform data or 90 pictures can be stored, and 500 intercepted wave data can be stored at the same time. The data browser can browse and view the currently saved waveform data and pictures, and the waveform data supports operations such as zooming and moving.USB data export, you can connect to a computer to copy picture files, and you can also copy system files to the oscilloscope for system upgrades. 5V2A fast charging and 1 hour can charge to 80%.</p><p></p><p>Handheld digital phosphor oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Is a cost-effective handheld dual-channel digital phosphor oscilloscope launched with a two-in-one oscilloscope and signal generator.
• The oscilloscope has a real-time sampling rate of 500MSPS and an analog bandwidth of 180MHz.

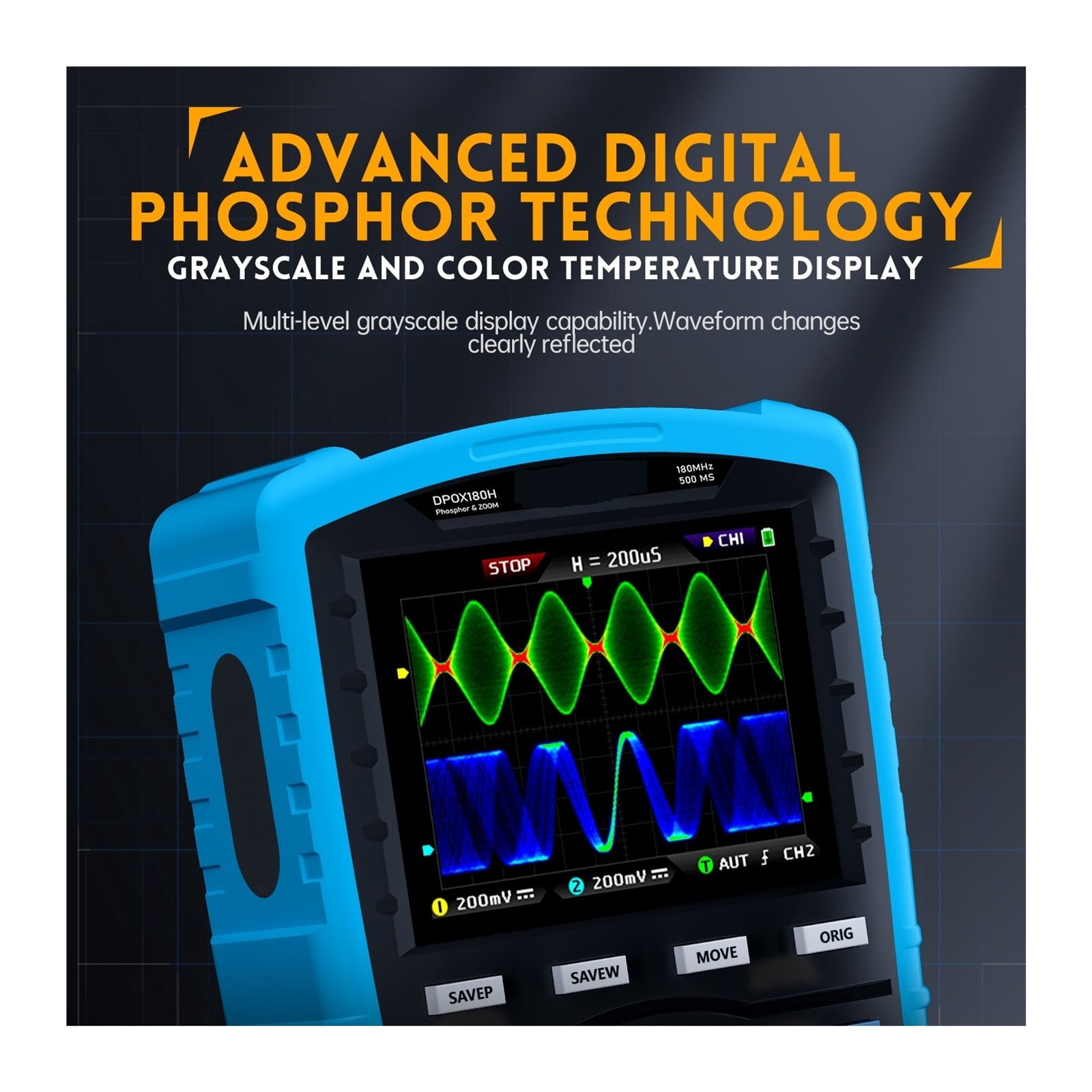

• In terms of display, a high-contrast 2.8-inch IPS full-vision LCD screen and digital fluorescent technology are used.
• The waveform display effect is good, and the colorways are grayscale and color temperature.
• With a waveform refresh rate of up to 50000wfm/s, it is easier to display abnormal signals with low probability.
